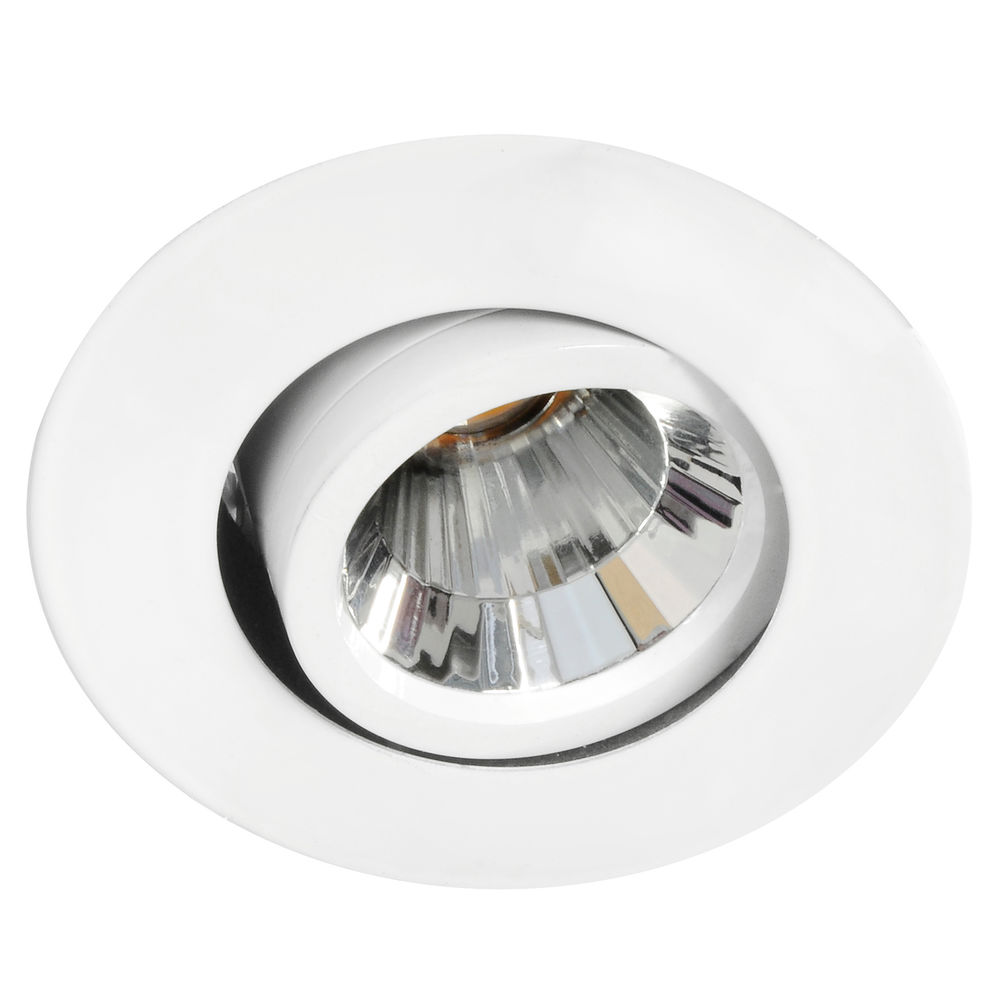

Blaze Fire Rated Adjustable LED Downlight Warm White (3000K) 7W (=75W) White — view 1

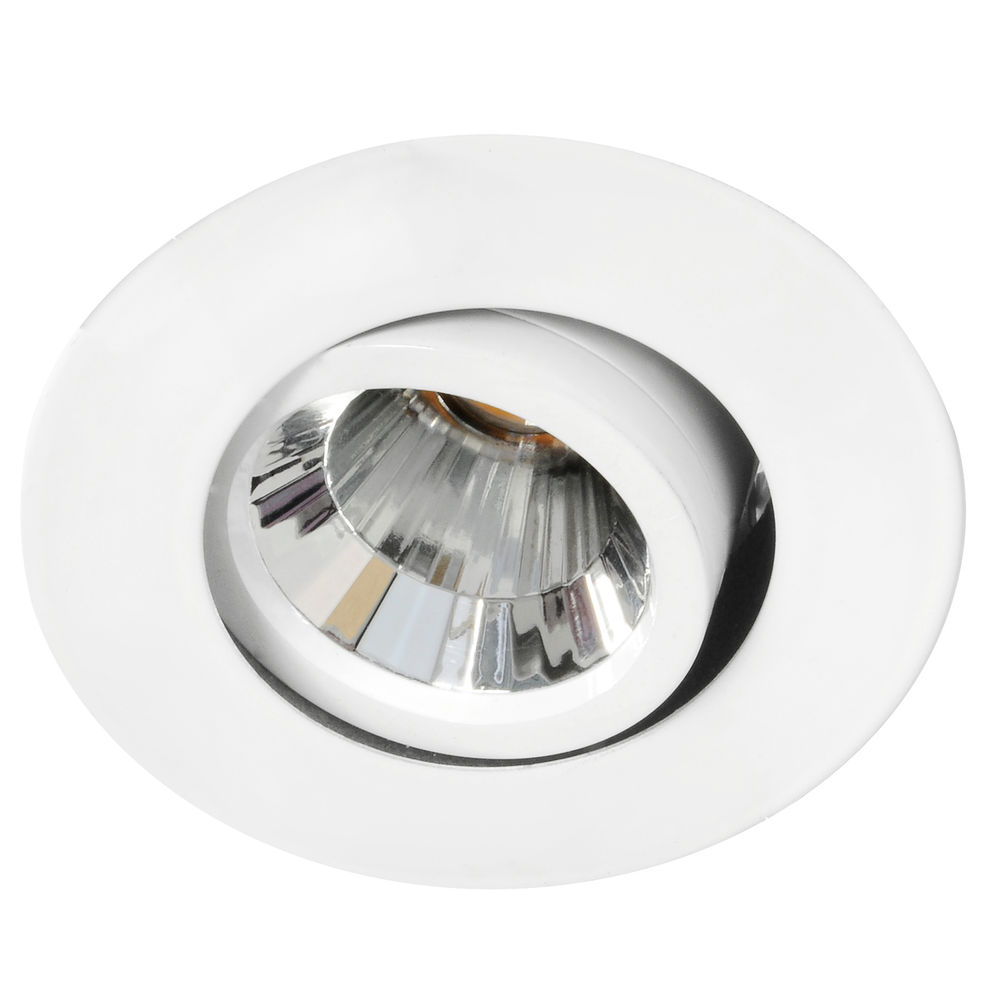

Blaze Fire Rated Adjustable LED Downlight Warm White (3000K) 7W (=75W) White — view 2

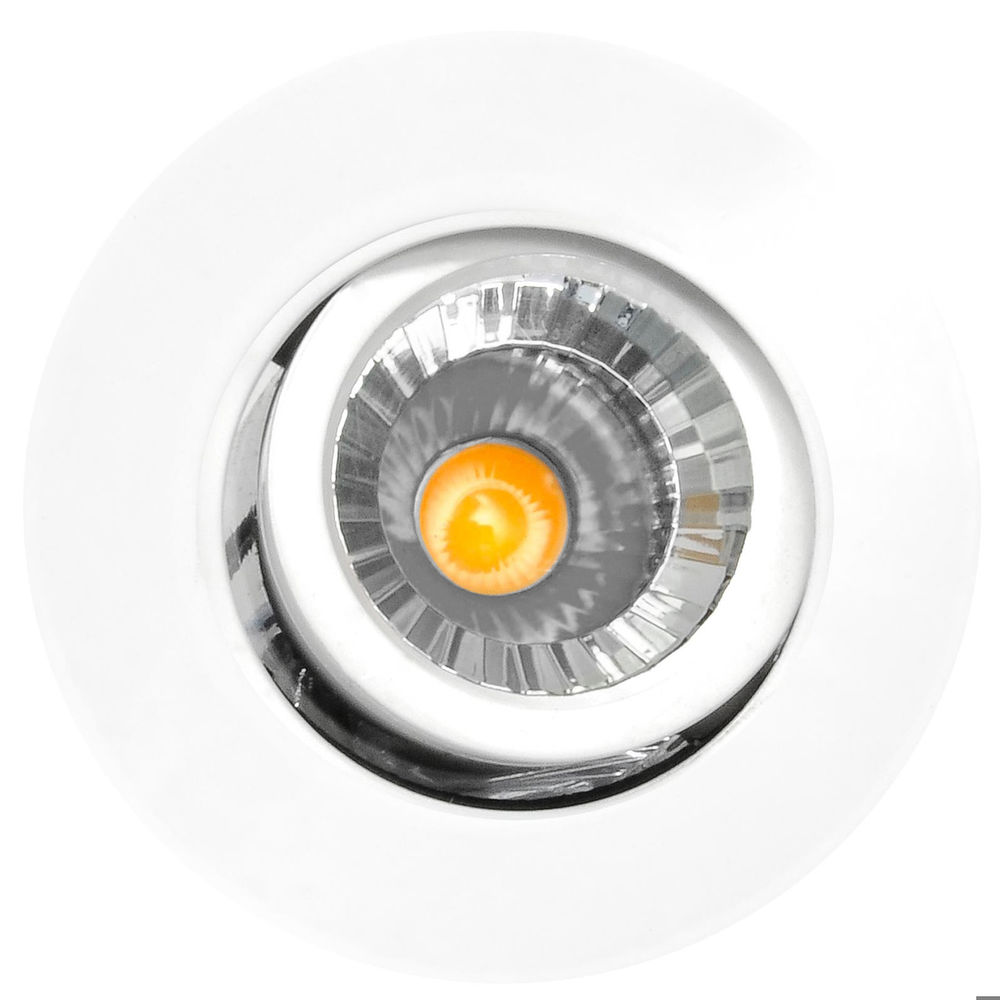

Blaze Fire Rated Adjustable LED Downlight Warm White (3000K) 7W (=75W) White — view 3

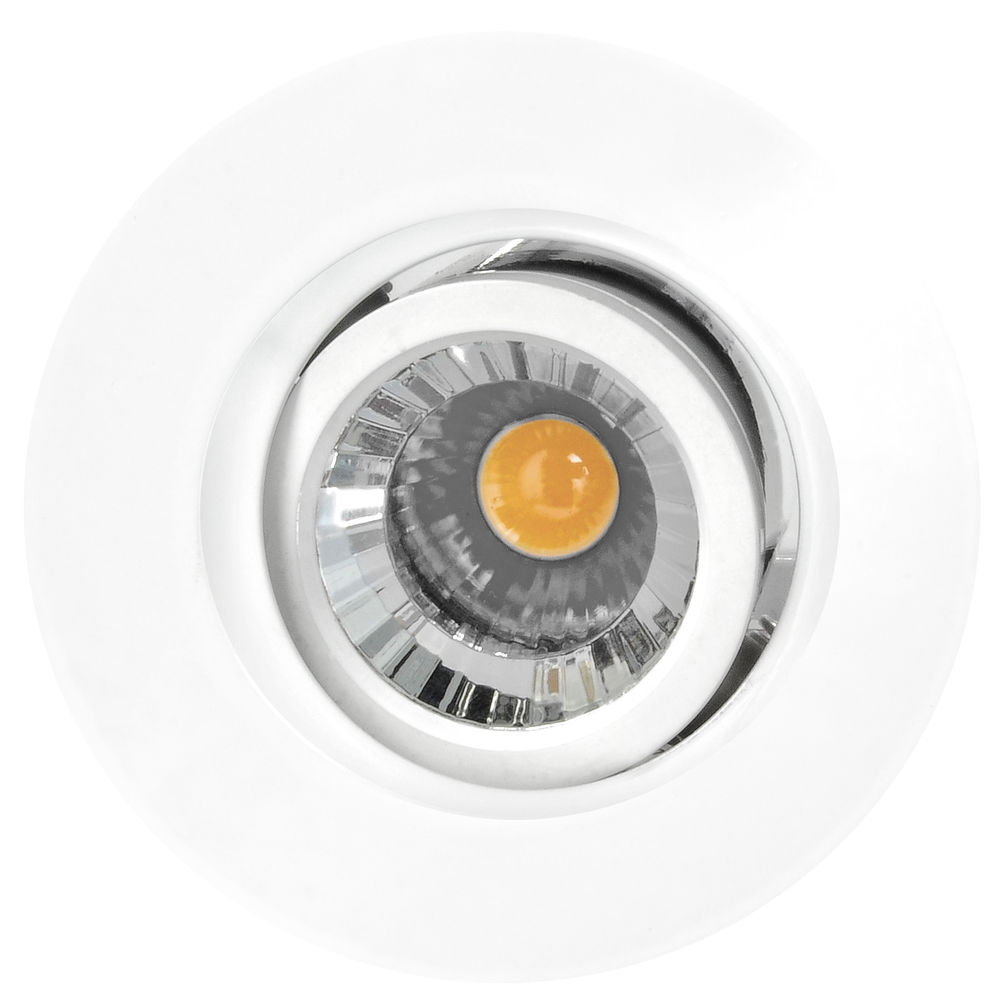

Blaze Fire Rated Adjustable LED Downlight Warm White (3000K) 7W (=75W) White — view 4

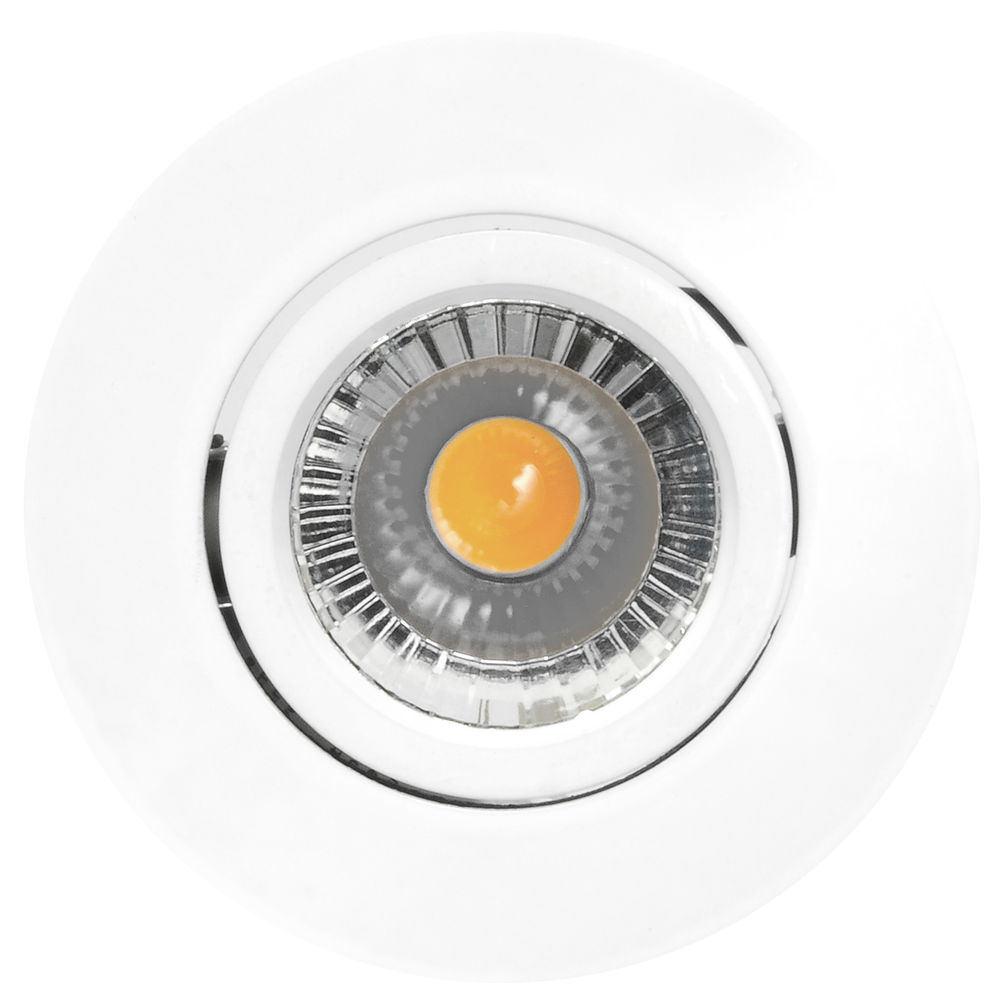

Blaze Fire Rated Adjustable LED Downlight Warm White (3000K) 7W (=75W) White — view 5

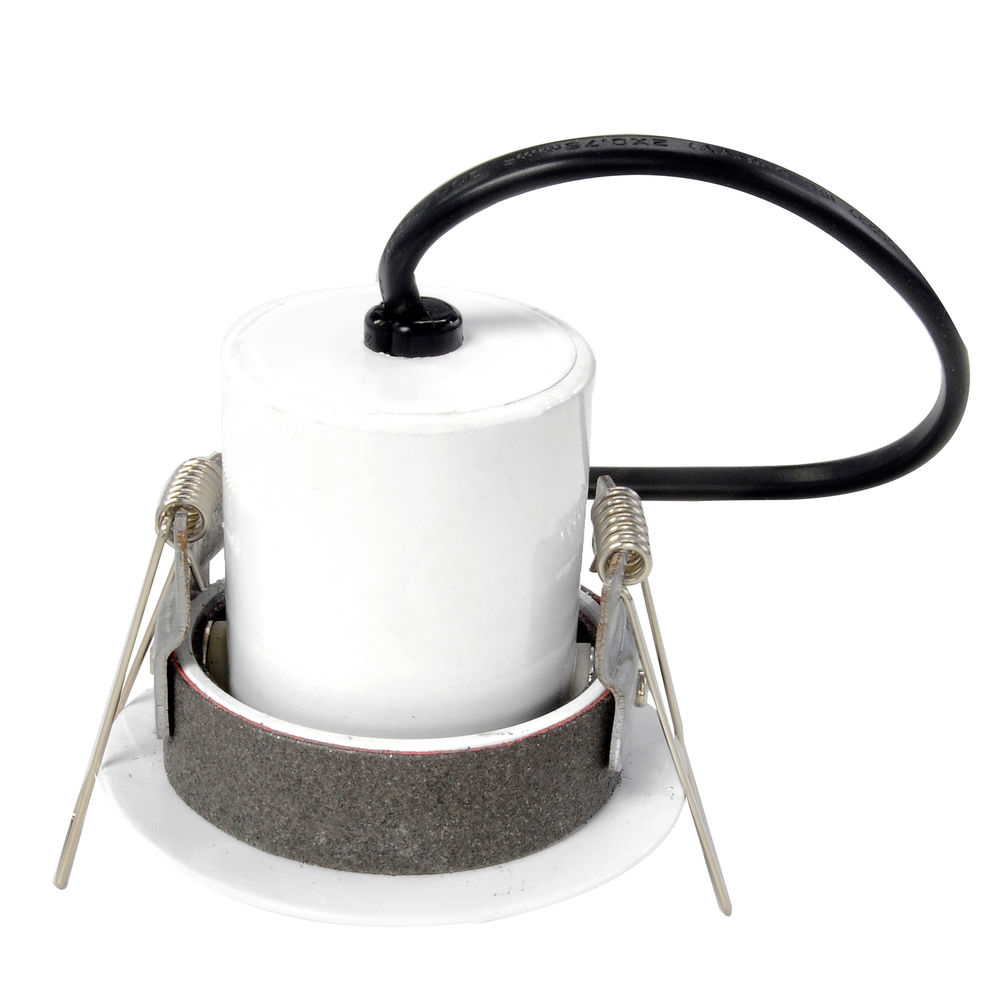

Blaze Fire Rated Adjustable LED Downlight Warm White (3000K) 7W (=75W) White — view 6

Blaze Round

Blaze Fire Rated Adjustable LED Downlight Warm White (3000K) 7W (=75W) White

Product code: FIRE BLAZAR801WW

The Blaze Fire Rated Adjustable LED Downlight is an IP64 fire rated downlight. Suitable for both domestic and commercial applications including bathroom usage, the Blaze LED downlight comes in a white aluminium finish, and includes integrated 7W dimmable CREE LED.

Key Features

Complies with October 2013 Part L regulations
Waterproof, double insulated, IP64 - Part P
Fully dimmable with most triac dimmers
Equivalent to 75W halogen
Small and compact
Fire Rated Part B
CREE LED
Sound Proof Part E
Built-in driver

Find a stockist View on Mr Resistor

Downloads

Specifications

Dimmable: Yes

Dimensions

Cut Out: 64mm (Diameter)
Depth: 63mm
Diameter: 75mm
Minimum Ceiling Depth: 70mm
Vertical Rotation: 20°
Width: 65mm

Electrical

Energy Efficiency Rating: A
Maximum Wattage: 7W
Power Factor: 0.90
Voltage: 240V

General

Colour: White
Construction: Die-cast Aluminium
Dimmable: Yes
IP Rating: IP64

Light Characteristics

Beam Angle: 45°
Colour Rendering Index: 80
Colour Temperature: 3000K Warm White
Lumens: 630 lm
Lumens Per Watt: 90 lm/W

In situ

Blaze Fire Rated Adjustable LED Downlight Warm White (3000K) 7W (=75W) White in use
